Like a mechanical pitchfork, each tine arm uses flexible tines to lift and carry the crop to the windrow. Unlike ground-engaging rakes, ProRotor™ tines don’t need to touch the soil, so there is less risk of contaminants being swept into the windrow. The gentle rotary action builds a well-shaped windrow without roping, and promotes drying after the hay is raked.
Three ProRotor models with working widths ranging from 13’9” to 25’7” are available to suit your raking needs. Choose the ProRotor 3114 single-rotor, side-delivery rake, the ProRotor 3223 dual-rotor, side-delivery rake or the ProRotor 3226 dual-rotor, center-delivery rake.
ProRotor tine arms are different, and that difference provides more capacity and better performance than rakes with straight or radial-mounted tine arms. ProRotor tine arms are curved and mounted at a tangent so the tines are in optimum position to pick up and deliver hay to the windrow.
The sealed rotor gearbox is lubricated by oil and requires only periodic daily maintenance of the crown and pinion, saving you time and providing reliable service.
ProRotor rakes give you plenty of clearance to cross windrows without catching the raked hay and allow you to move between fields easily. You can fold the guards mechanically and quickly remove the tine arms to achieve a narrow transport width for safety on the road, and to take up less space in the shed when not in use.
New Holland offers three ProRotor models with working widths ranging from 13’9” to 25’7” to suit individual farm needs. Choose the ProRotor™ 3114 single-rotor, side-delivery rake, the ProRotor™ 3223 dual-rotor, side-delivery rake or the ProRotor™ 3226 dual-rotor, center-delivery rake.
The sealed rotor gearbox is lubricated by oil and requires only periodic daily maintenance of the crown and pinion, saving you time and providing reliable service. Tine arms are clamped and bolted providing secure and reliable tine arm attachment. ProRotor rotary hay rakes normally operate at less than 540 RPM for optimal raking quality and the gentlest handling of legume crops.
ProRotor tine arms are different, and that difference provides more capacity and better performance than rakes with straight or radial-mounted tine arms. ProRotor tine arms are curved and mounted at a tangent so the tines are in optimum position to pick up and deliver the hay to the windrow. The cam action and specially formed curve of the arms lift the tines quickly from the windrow with more clearance, resulting in a more even and consistent windrow.
New Holland’s ProRotor™ rotary rakes help producers make uniform, puffy windrows that are easy to bale. The tines never need to touch the soil, so there is little risk of contaminants being swept into the windrow.

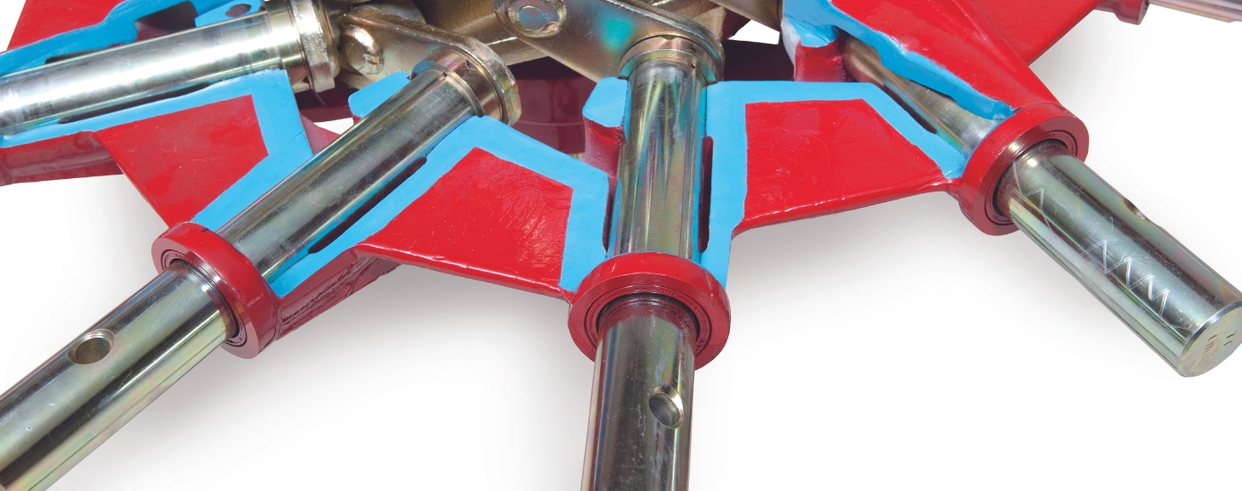

The heart of a rotary rake is the rotor gearbox, that’s why ProRotor rake rotors are sealed and lubricated by oil for reliable and dependable service life. Practically maintenance free rotor gearboxes do not require daily greasing of the tine arm assemblies so you spend less time greasing and more time raking

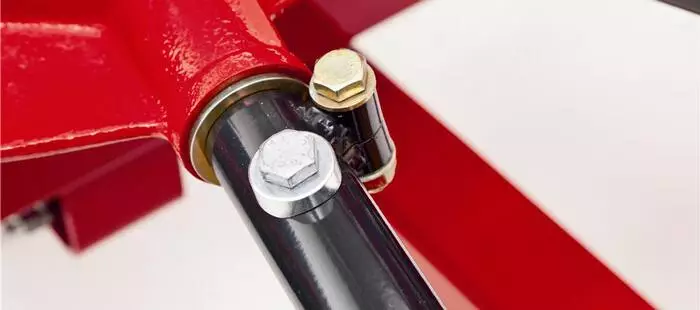

ProRotor tine arms are mounted at a tangent, placing the tines in the optimum position for gathering hay. The smooth cam action and specially formed tine arm curve lift the tines quickly as hay is deposited into the windrow, resulting in an even and consistent windrow. To handle your heaviest crops, each tine arm is secured by a through bolt and clamping bolt for high reliability.

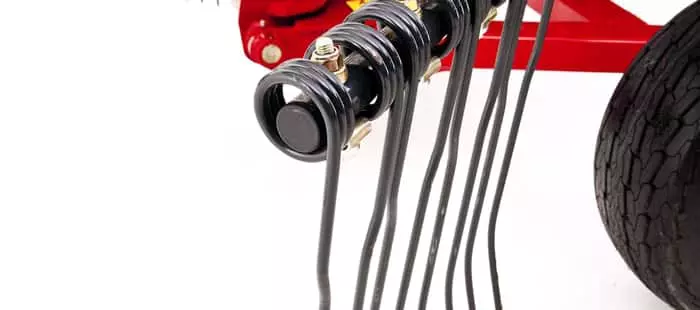

Individual raking tines are uniquely shaped to provide equal spacing, improving coverage to reduce missed crop. With the capacity to handle the heaviest of crops, individual tines have three spring coils for flexibility to protect the stubble from inadvertent contact. Each tine is securely bolted and coils wrap around the tine arm, for extra piece of mind optional tine saver clips are available.
Robert's Farm Equipment - Chesley
014945 Bruce Rd 10
Chesley,
ON
N0G 1L0
STORE HOURS:
Monday to Friday: 8:00 AM - 5:00 PM
Saturday: 8:00 AM - 12:00 PM
Sunday: Closed
4’ x 5’, 4’ x 6’, 5’ x 6’
4’ x 4’, 4’ x 5
14” x 18”
10' 1" - 16' 8"
9' 2" - 10' 4"
6' 8" - 10' 4"
4’ x 5’, 4’ x 6’
5' 6" - 7' 11"
30’ 0” RAKING WIDTH
17’ 5” - 36’ 0” RAKING WIDTH
110 - 272
17' 1" - 24' 11"
18' 0" - 28' 0"
